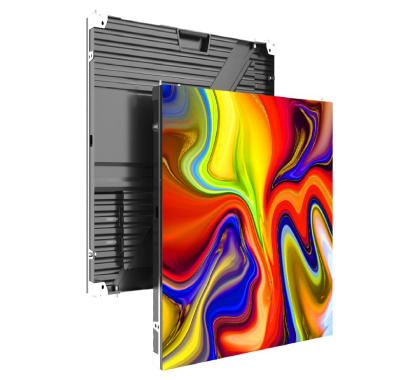

RBF Series

Modern Display, Stylish Performance.

Upgrade your indoor visual experience with Logic RBF – the perfect choice for any environment that demands a sophisticated touch. With its advanced features, stylish design, and mesmerizing picture quality, RBF is a leading-edge display that delivers an unparalleled visual experience.

Simplified Assembly, Fast Installation

Our front-serviceable design allows for hassle-free installations with no rear access, and magnetic modules enable easy and secure fixing and removal for service. Plus, quick-release cabling ensures tool-less services.

Guaranteed Safe Checkout

MODEL NAME	RBF-I15D	RBF-I25D
Application	Indoor	Indoor
Pixel Pitch (in mm)	1.53	2.5
LED Type	SMD	SMD
LED Lifetime (In Hours)	1,00,000	1,00,000
Brightness (cd/m2)	600-800	600-800
Contrast Ratio	5000:1	5000:1
Frame Rate (Hz/sec)	60	60
Refresh Rate (Hz/sec)	3840	3840
Cabinet Dimension W x H x D (in mm)	640 x 480 x 80	640 x 480 x 80
Module Dimension (in mm)	320 x 160	320 x 160
Physical Resolution	416 x 312	256 x 192
Weight (Kg/Cabinet)	7.5	7.5
Service Access	Front	Front
Optimal Viewing Angle (H/V)	160° /140°	160° /140°
Storage Temperature	-200C~600C	-200C~600C
Working Temperature	-100C~400C	-100C~400C
Relative Humidity	≤95%	≤95%
Storage Humidity	≤45%	≤45%
Voltage	AC 110-240 V	AC 110-240 V
Power Consumption (Avg) (in W/m2)	155	152
Power Consumption (Avg) (in W/m2)	466	457
Heat generation-Max (BTU/m2)	1590.06	1559.35
MTBF (in hours)	10,000	10,000
Protection Level (Front/Rear)	IP30	IP30
Colour (M)	16384	16384
Grey Scale	14 bit	14 bit
Certification	BIS	BIS
Physical density	4,22,500 pixels/m2	1,60,000pixels/m2
